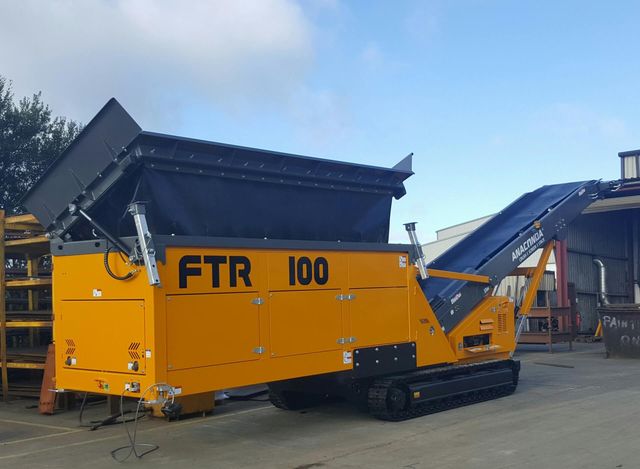

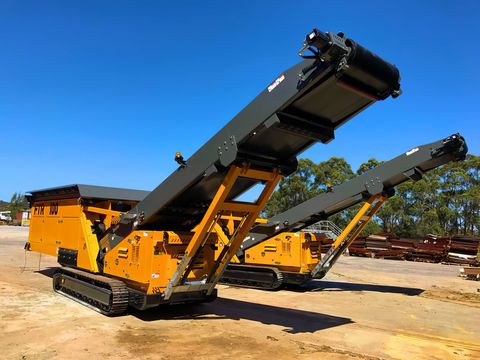

FTR100 Tracked Feeding Conveyor
Compact tracked feeder conveyor for surge loading and stockpiling.
- Conveyor length
- 10 m (33’)
- Capacity
- Up to 700 tph (Up to 771 US tph)
- Hopper (standard)
- 6 m³ (8 yd³)
What it does
The Anaconda FTR100 Feeding Conveyor features a 4.2 m (14’) feeder with a 6 m³ (8.5 yd³) hopper and can be used for a wide range of applications such as sand, gravel, aggregates, compost, coal and wood chips. The FTR100 has a variable speed conveyor to accommodate different material processing requirements and can be fitted with an overband magnet for separation of materials. With the addition of a double deck vibrating grid, the FTR100 can be transformed into a screen to scalp off oversize material. If material is moisture-laden or contains clumpy clays, the FTR100 can be configured with an optional slow-speed auger in the feeder hopper to help break up material lumps. The FTR100 has been designed for portability, fitting into a standard 12 m (40′) shipping container.
Where it fits
- Sand and gravel
- Aggregate
- Compost
- Wood chips
- Coal
- Surge loading
Works with
Key features
- Hydraulic jacking legs for easy set up
- Hydraulic folding head section
- Easy access to engine compartment
- Set up within 15 minutes
- Heavy-duty/high-torque applications

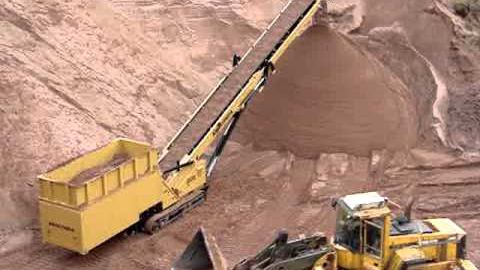

See it working

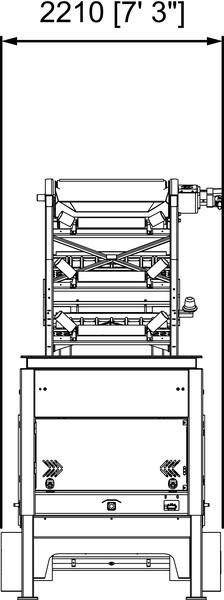

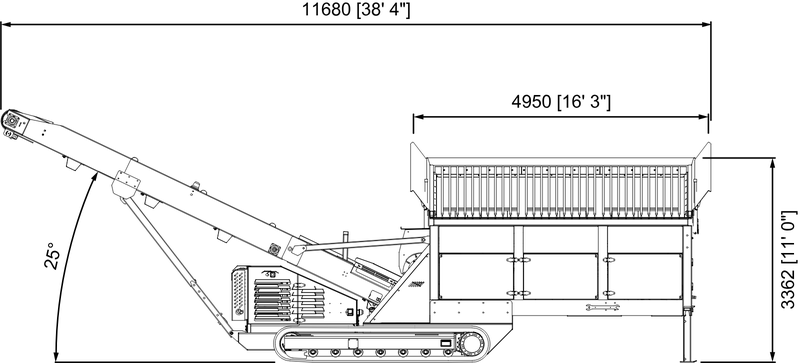

Dimensions
For BC haulingTransport width 2,250 mm (7' 5"), height 2,500 mm (8' 2").
Transport
- Length
- 11,900 mm (39' 1")
- Width
- 2,250 mm (7' 5")
- Height
- 2,500 mm (8' 2")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the FTR100.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the FTR100 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the FTR100
How does the FTR100 move between sites?
Folded for transport, Anaconda's drawing puts the FTR100 at 11,900 mm (39' 1") long, 2,250 mm (7' 5") wide and 2,500 mm (8' 2") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Anaconda quotes set-up within 15 minutes.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
