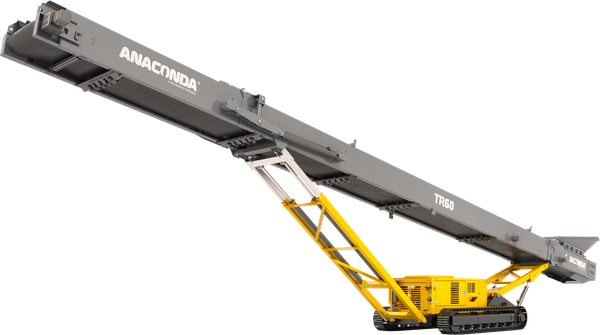

TR60 Tracked Conveyor
18 m tracked conveyor for transfer and stockpiling.
- Conveyor length
- 18.3 m (60' 0")
- Capacity
- Up to 450 tph (Up to 496 US tph)
- Belt width
- 900 mm (36")
What it does

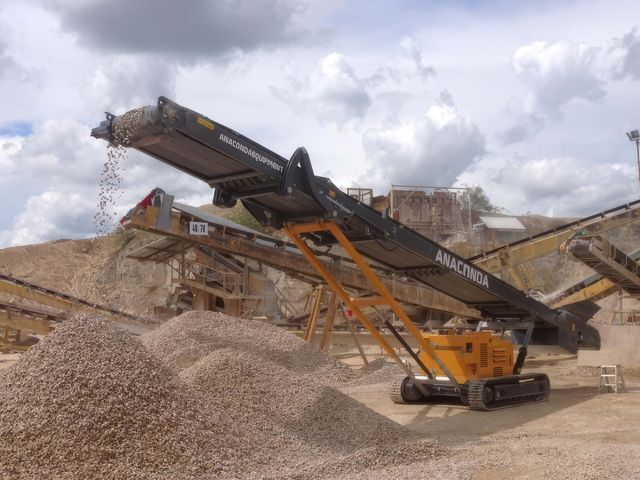

The Anaconda TR60 Tracked Conveyor has an 18 m (60′) conveyor body and can accept feed sizes of up to 100 mm (4”). The TR60 is a compact solution for operators looking to transport equipment easily between sites. The TR60 contains a hydraulically folding head section and hydraulically raised front and rear legs for improved positioning on difficult terrain.
Where it fits
- Aggregate
- Soil
- Sand
- Coal
- Overburden
- Stockpiling
Works with
Key features
- Hydraulic folding head section
- Hydraulic raise and lower for front and rear legs
- Impact bed under feed boot
- 3-ply 900 mm (36”) wide plain belt

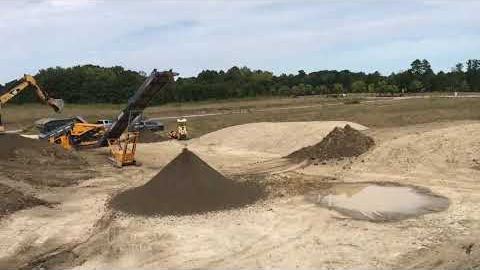

See it working

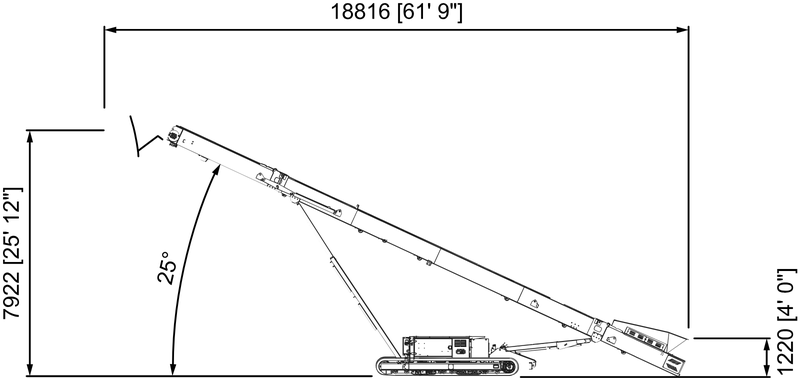

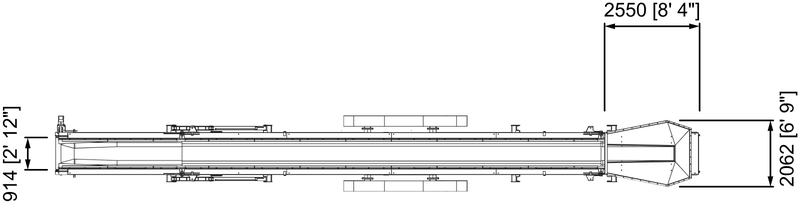

Dimensions
For BC haulingTransport width 2,240 mm (7' 4"), height 3,100 mm (10' 2").
Transport
- Length, configuration A
- 12,759 mm (41' 10")
- Height, configuration A
- 3,100 mm (10' 2")
- Length, configuration B
- 11,950 mm (39' 2")
- Height, configuration B
- 2,590 mm (8' 6")
- Width
- 2,240 mm (7' 4")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the TR60.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the TR60 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the TR60
How does the TR60 move between sites?
Folded for transport, Anaconda's drawing puts the TR60 at 12,759 mm (41' 10") long, 2,240 mm (7' 4") wide and 3,100 mm (10' 2") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Ask us. We will walk you through set-up for the TR60 before it arrives.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
Didn’t find what you’re looking for?
Give us a call and we’d be happy to help you find the right crushing and screening solution.
