SR410 Finishing Screen
Compact finishing screen that fits a 40 foot high cube container.
- Capacity
- Up to 200 tph (Up to 220 US tph)
- Screenbox size
- 3,000 mm x 1,200 mm (10’ x 4’)
- Max feed size
- 75 mm (3”)
What it does
The Anaconda SR410 Finishing Screen can stockpile up to 3 products simultaneously at a rate of 200 tph (220 US tph). The max feed size for the SR410 is 75 mm (3”), and it has a 3 x 1.2 m (10’ x 4’) two-bearing screen box, 4.26 m (14′) feed hopper and 3 hydraulically folding stockpile conveyors. The SR410 can be used for sand, gravel, coal and aggregates, making it a versatile solution for operators across multiple job sites. The small footprint of the SR410 makes it easy to manoeuvre in tight spaces and can be set up and commissioned within 20 minutes of arrival on site.
Where it fits
- Aggregates
- Sand
- Gravel
- Topsoil
- Wood chip
- Overburden
Works with
Key features
- Fully adjustable spreader plate for optimal screening
- End-tensioned mesh arrangement
- Screen box and tail conveyor lower for easy mesh change
- Variable speed 3-ply belt feeder
- Variable speed main and side conveyors
- Radio remote tipping grid

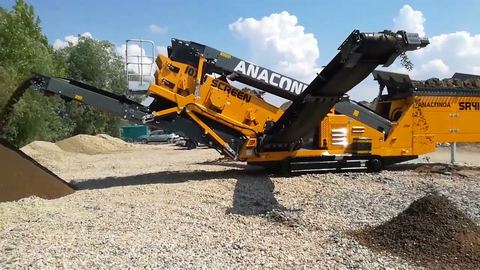

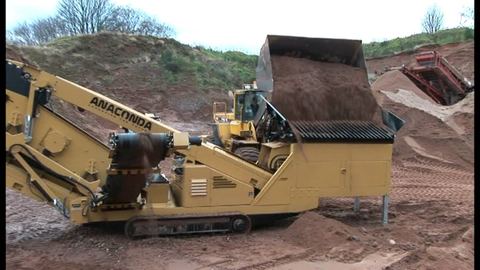

See it working
Dimensions
For BC haulingTransport width 2,600 mm (8' 6"), height 2,560 mm (8' 5").
Transport
- Length
- 11,800 mm (38' 9")
- Width
- 2,600 mm (8' 6")
- Height
- 2,560 mm (8' 5")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the SR410.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the SR410 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the SR410
How does the SR410 move between sites?
Folded for transport, Anaconda's drawing puts the SR410 at 11,800 mm (38' 9") long, 2,600 mm (8' 6") wide and 2,560 mm (8' 5") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Anaconda quotes set-up and commissioning within 20 minutes of arrival.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
