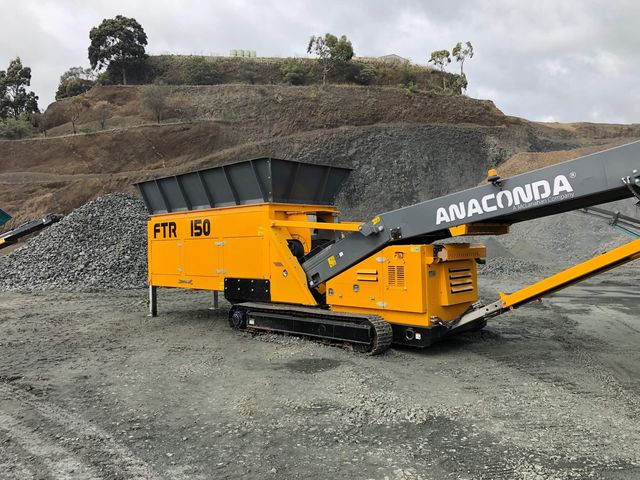

Anaconda FTR150 tracked feeding conveyor in a quarry yard

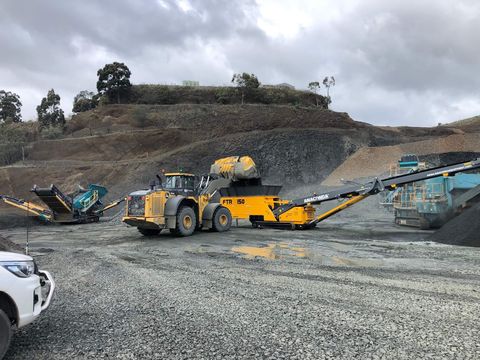

Anaconda FTR150 tracked feeding conveyor on a job site, Anaconda photo 1

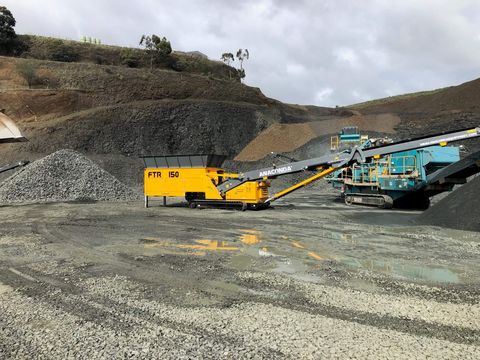

Anaconda FTR150 tracked feeding conveyor on a job site, Anaconda photo 2

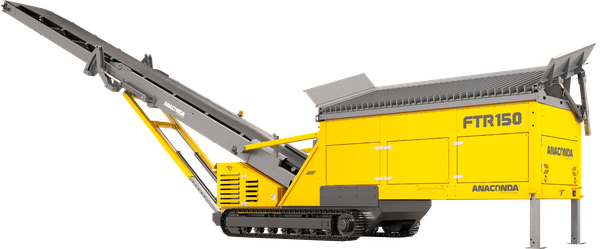

Anaconda FTR150 tracked feeding conveyor
Anaconda

FTR150 Tracked Feeding Conveyor

Mid-size tracked feeder conveyor for bulk handling and loading.

Conveyor length
15 m (49’)
Capacity
Up to 700 tph (Up to 771 US tph)
Hopper (standard)
6 m³ (8 yd³)
Get a Quote

What it does

The Anaconda FTR150 Feeding Conveyor was developed as a mid-size solution for operators with a 15 m (50’) variable speed stockpiling conveyor. The FTR150 is suitable for applications including rock scalping, concrete, waste, wood chips and mulch.

The FTR150 can also be used to screen oversize through the addition of a double deck vibrating grid to scalp off materials. An overband magnet can be fitted for magnetic debris separation, allowing for a cleaner stockpiled product. The FTR150 is also available with a mulcher in the feeder hopper for breaking up clumpy clays and moisture-laden organics ahead of feeding or stockpiling.

Where it fits

  • Rock scalping
  • Concrete
  • Wood chips
  • Mulch
  • Compost
  • Truck loading

Works with

Key features

  • Hydraulic jacking legs for easy set up
  • Hydraulic folding head section
  • Easy access to engine compartment
  • Set up within 15 minutes
  • Heavy-duty/high-torque applications
See it working

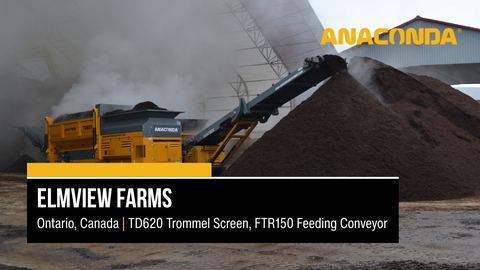

Elmview Farms case study: TD620 and FTR150 (Anaconda video)
The FTR150 feeding conveyor (Anaconda video)

Full specifications
Height
6.58 m (21′ 6″)
Length
17.30 m (56′ 11″)
Width
2.25 m (7′ 4″)
Weight (Vibrating grid)
17,800 kg (39,200 lbs)
Hopper capacity
10 m³ (13 yd³)

Anaconda’s published figures. Capacity depends on material and set-up. FTR150 on anacondaequipment.com

Dimensions

For BC haulingTransport width 2,250 mm (7' 5"), height 2,500 mm (8' 2").

Transport

Length
11,900 mm (39' 1")
Width
2,250 mm (7' 5")
Height
2,500 mm (8' 2")

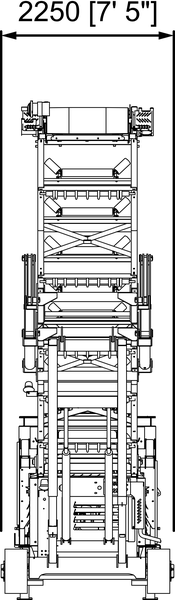

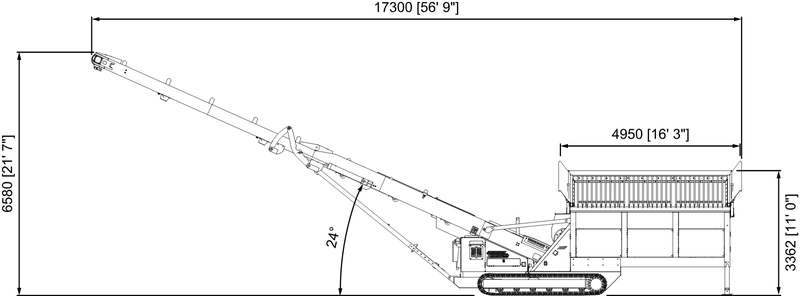

Anaconda working drawing of the FTR150, with dimensions
Anaconda working drawing of the FTR150, with dimensions

Engine options
ModelPower UnitsEmission Tier
JCB 444 EcoMAX55 kW (74 HP)Tier 4F
JCB 430 DieselMAX55 kW (74 HP)Stage V
Deutz 2.9 L450 kW (67 HP)Stage V

Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.

Optional features

  • Straight or flared extensions
  • Mulcher in feeder hopper
  • Remote control tipping grid
  • Two deck vibrating grid
  • Dust cover for the main belt
  • Radio remote control
  • Overband magnet
  • Twin gearbox drive on Feeder or Main Conveyor for heavy duty/high torque applications

Case study

Elmview Farms Wallenstein, Ontario Screening compost, about 100 yd³ an hour. Read it on anacondaequipment.com

Own it, rent it, service it

  • Buy new

    We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the FTR150.

  • Rent

    We rent tracked machines for jobs across Western Canada. Ask whether the FTR150 is available for your dates.

    Rentals

  • Parts and service

    Parts and service from Delta, BC, with on-site support across Western Canada.

    Parts and service

Download brochure

Questions about the FTR150

How does the FTR150 move between sites?

Folded for transport, Anaconda's drawing puts the FTR150 at 11,900 mm (39' 1") long, 2,250 mm (7' 5") wide and 2,500 mm (8' 2") high. Ask us to plan the haul from our yard in Delta, BC.

How long does it take to set up?

Anaconda quotes set-up within 15 minutes.

Which engine does it run in Canada?

Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.

Who services it?

We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
