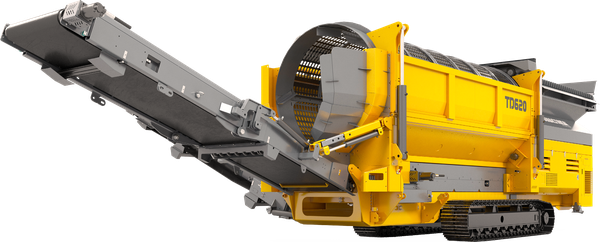

TD620 Trommel Screen
High-capacity trommel for topsoil, compost and aggregate.
- Capacity
- Up to 200 tph (Up to 220 US tph)
- Drum size (L × Ø)
- 5.50 m × 2.00 m (18’ × 6’ 7”)
- Hopper capacity
- 9.6 m³ (12.6 yd³)
What it does
The Anaconda TD620 Trommel Screen is a robust primary screening solution for operators looking to process a range of organic materials such as topsoil, sand, shredded waste, aggregate, dolomite and compost. The TD620 can process up to 200 tph (220 US tph) with a max feed size of 300 mm (12”) and max screen size of 75mm (3”). The Trommel Screen range has been designed with a lift bar system to effectively cut through wet materials and prevent build-up in the drum.
Where it fits
- Topsoil
- Compost
- Mulch
- Sand
- Shredded waste
- Aggregate
Works with
Key features
- Quick set up within 20 minutes of arrival on site
- Four-wheel hydraulic drive drum system
- Variable speed on the screening drum and all conveyors
- Drum load sensing system

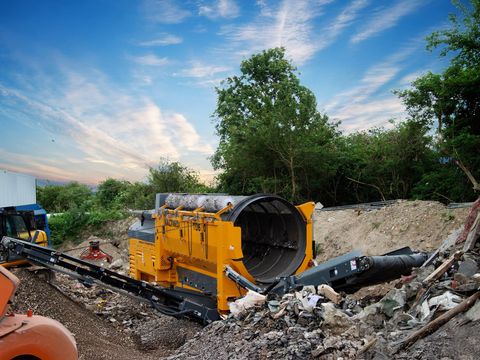

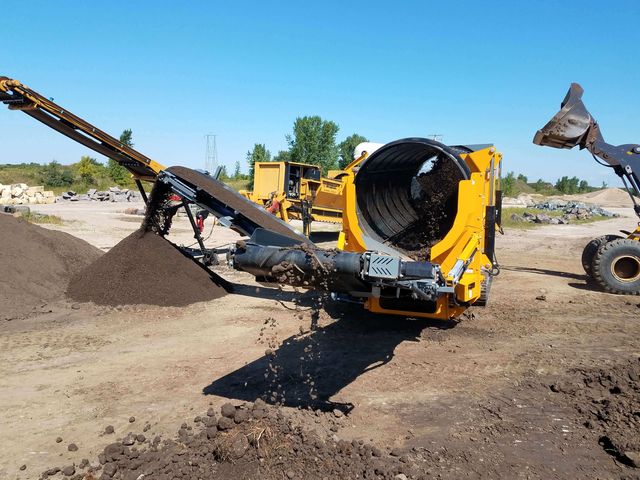

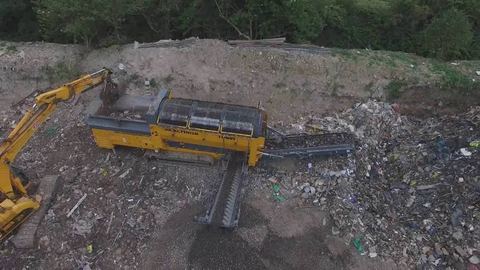

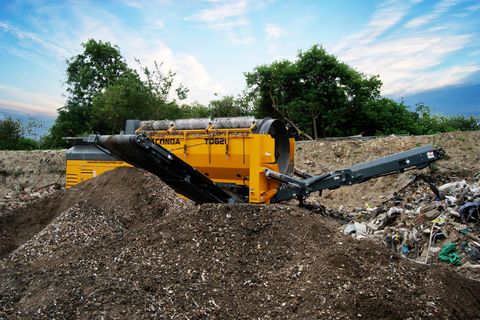

See it working

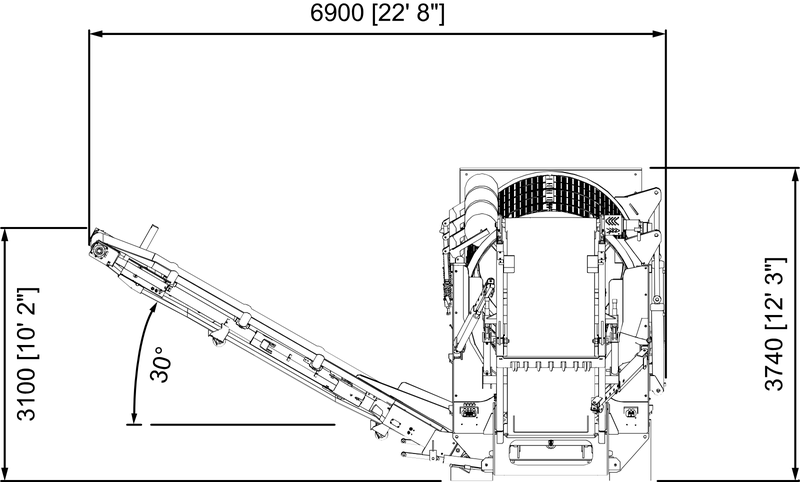

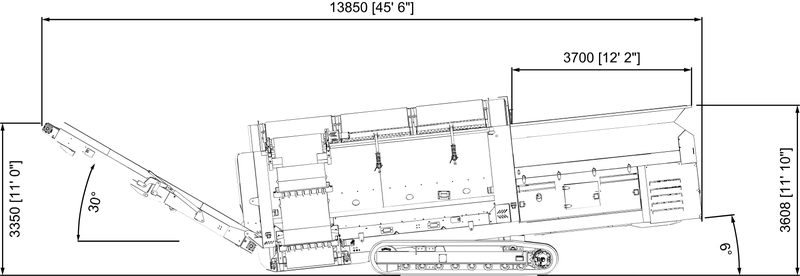

Dimensions
For BC haulingTransport width 3,000 mm (9' 10"), height 3,550 mm (11' 8").
Transport
- Length
- 11,350 mm (37' 3")
- Width
- 3,000 mm (9' 10")
- Height, tipping grid, no extension
- 3,550 mm (11' 8")
- Height, tipping grid with extension
- 3,670 mm (12' 0")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the TD620.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the TD620 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the TD620
How does the TD620 move between sites?
Folded for transport, Anaconda's drawing puts the TD620 at 11,350 mm (37' 3") long, 3,000 mm (9' 10") wide and 3,550 mm (11' 8") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Anaconda quotes set-up within 20 minutes of arrival on site.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
