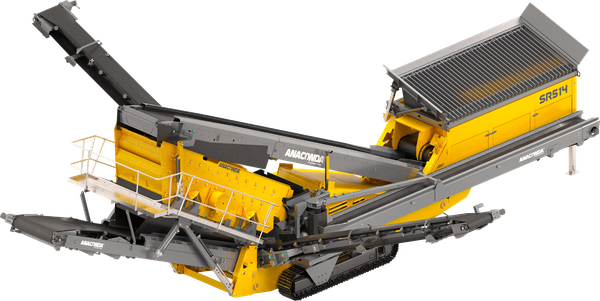

SR514 Finishing Screen
High-capacity finishing screen in two- or three-deck form.
- Capacity
- Up to 350 tph (Up to 385 US tph)
- Screenbox size
- 4,330 mm x 1,520 mm (14’ x 5’)
- Max feed size
- 125 mm (5”)
What it does

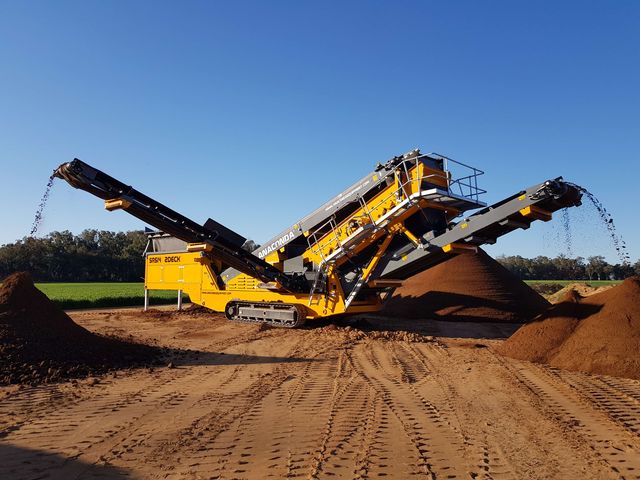

The Anaconda SR514 Finishing Screen can be used with fine material that contains little to no oversize or where tighter screening is required. The SR514 can screen or stockpile up to 4 finished products at a rate of 350 tph (385 US tph) and is available in a 2-deck or 3-deck configuration. The SR514 can be set up and commissioned within 20 minutes of arrival on site.
The SR514 can process a max feed size of up to 125 mm (5”) and is ideal for processing quarry aggregates, crusher run, recycled C&D waste, sand, topsoil, coal and fine aggregate.
Where it fits
- Quarry aggregate
- Crusher run
- Sand
- Topsoil
- Recycled C&D
- Coal
Works with
Key features
- High-energy 4.33 x 1.52 m (14’ x 5’) 2 or 3-deck screen box
- 3-piece side-tensioned top and second deck
- 2-piece end-tensioned bottom deck
- Variable speed 4-ply belt feeder
- Reversible transfer belt on 3-deck screen
- Variable speed on all stockpile belts
- Radio remote tipping grid

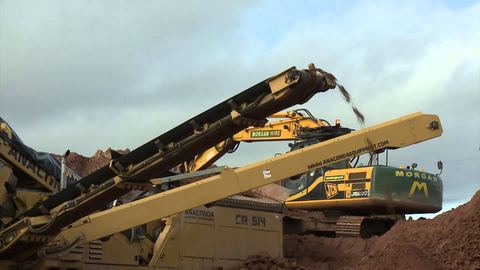

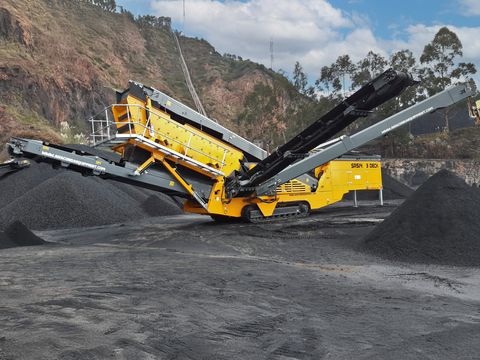

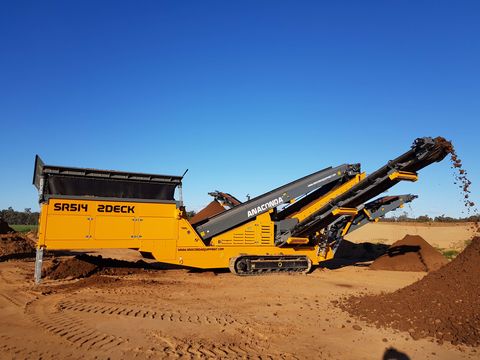

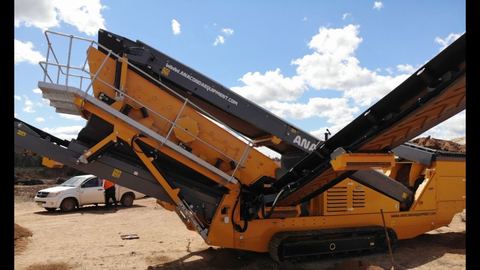

See it working

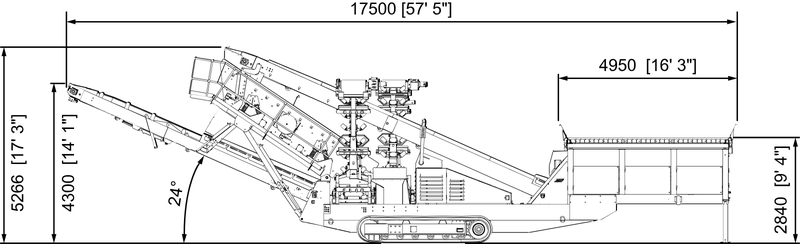

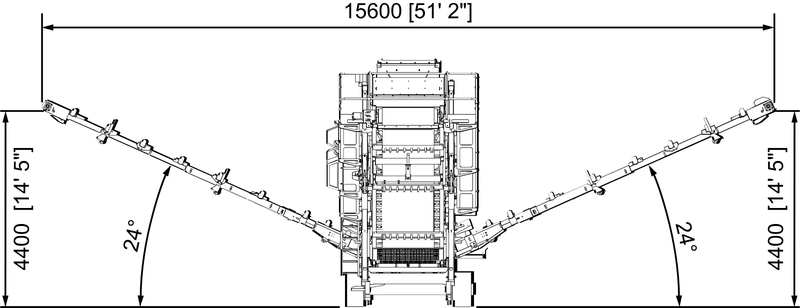

Dimensions
For BC haulingTransport width 3,000 mm (9' 10"), height 3,300 mm (10' 10").
Transport
- Length
- 16,180 mm (53' 1")
- Width
- 3,000 mm (9' 10")
- Height
- 3,300 mm (10' 10")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the SR514.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the SR514 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the SR514
How does the SR514 move between sites?
Folded for transport, Anaconda's drawing puts the SR514 at 16,180 mm (53' 1") long, 3,000 mm (9' 10") wide and 3,300 mm (10' 10") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Anaconda quotes set-up and commissioning within 20 minutes of arrival.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
