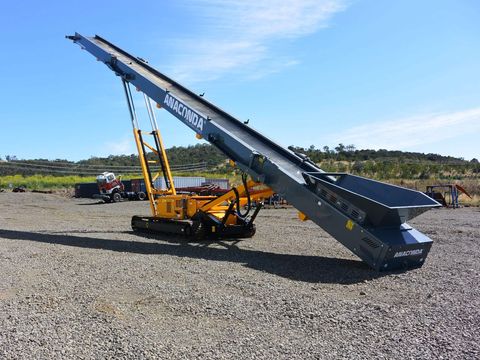

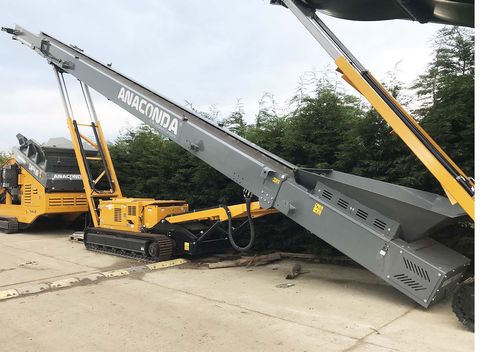

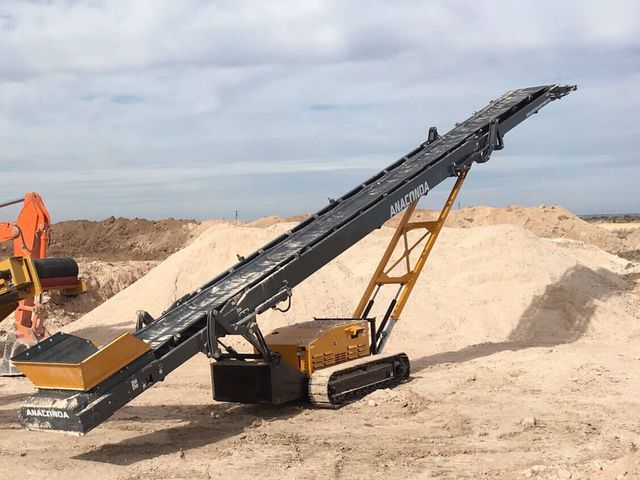

TR75 Tracked Conveyor
23 m tracked conveyor for higher-volume stockpiling.
- Conveyor length
- 23 m (75' 5")
- Capacity
- Up to 500 tph (Up to 551 US tph)
- Max discharge height
- 10.5 m (34' 5")
What it does
The Anaconda TR75 Tracked Conveyor has a 23 m (75’) conveyor body and is capable of moving up to 500 tph (551 US tph) with a maximum material size of 100 mm (4”). It can also be containerised, allowing operators to transport the unit in a standard 40’ shipping container with minimal dismantling required.
Where it fits
- Stockpiling
- Transfer
- Surge control
- Aggregate
- Sand
Works with
Key features
- Hydraulic folding head and tail section
- Hydraulic raise and lower for front and rear legs
- Impact bed under feed boot
- 3-ply 1,050 mm (42”) wide plain belt

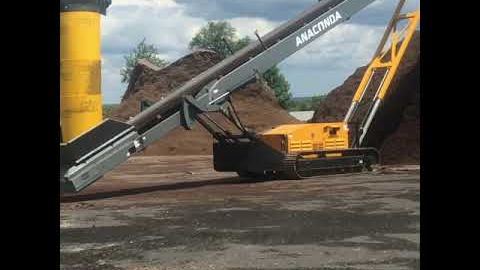

See it working

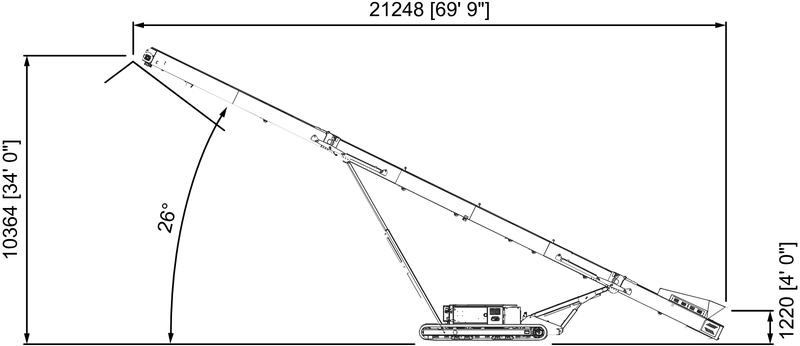

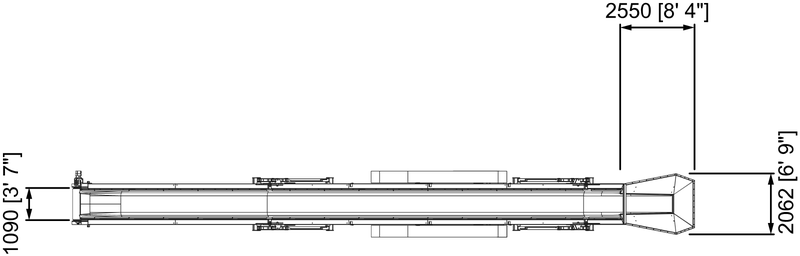

Dimensions
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the TR75.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the TR75 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the TR75
How does the TR75 move between sites?
Ask us for transport dimensions before you plan the haul.
How long does it take to set up?
Ask us. We will walk you through set-up for the TR75 before it arrives.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
