FTR200 Tracked Feeding Conveyor
Long-reach tracked feeder conveyor for tall stockpiles.
- Conveyor length
- 20 m (66’)

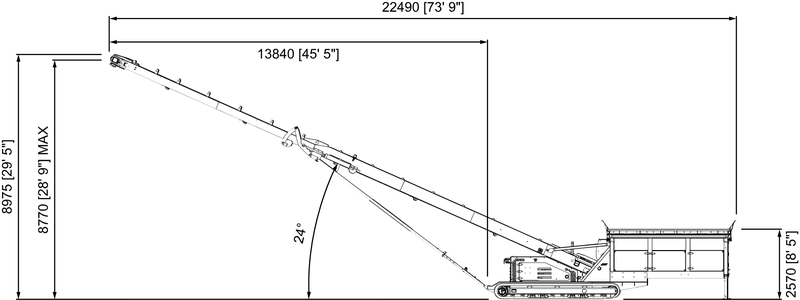

- Discharge height (min - max)
- 6.08 – 8.77 m (19’ 11” – 28’ 9”)
- Capacity
- Up to 700 tph (Up to 771 US tph)
What it does

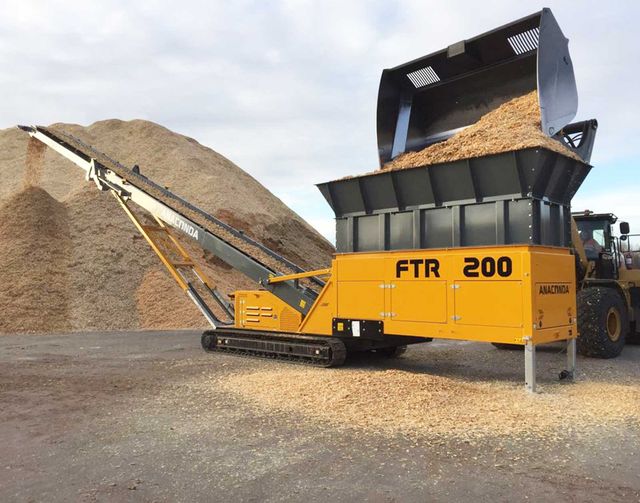

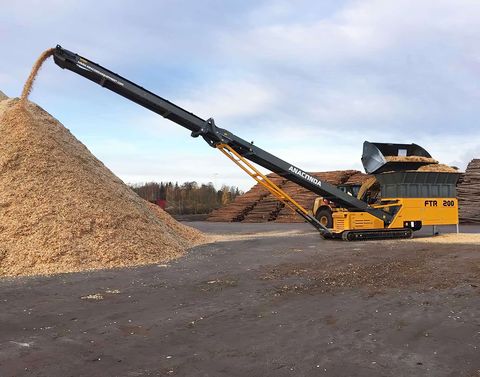

The Anaconda FTR200 Feeding Conveyor is a variable speed conveyor capable of processing sand, gravel, aggregates, compost, coal and wood chips. The FTR200 is the largest in the Feeding Conveyor range with a length of 20 m (66’) and a hopper capacity of 13 m³ (17 yd³). The unit can be fitted with an overband magnet to enhance stockpile quality and be used as a screen with the addition of a double deck vibrating grid to scalp away oversize material. The FTR200 can also operate as a mulcher with an optional slow-speed auger configured into the feeder hopper.
Where it fits
- Sand and gravel
- Aggregate
- Compost
- Wood chips
- Coal
- Truck and barge loading
Works with
Key features
- Hydraulic jacking legs for easy set up
- Hydraulic folding head section
- Easy access to engine compartment
See it working
Dimensions
For BC haulingTransport width 2,550 mm (8' 4"), height 2,585 mm (8' 6").
Transport
- Length
- 16,130 mm (52' 11")
- Width
- 2,550 mm (8' 4")
- Height
- 2,585 mm (8' 6")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the FTR200.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the FTR200 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the FTR200
How does the FTR200 move between sites?

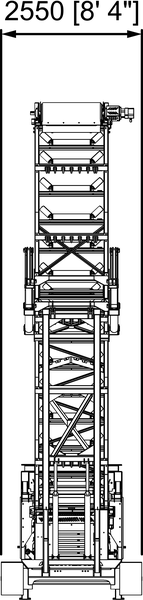

Folded for transport, Anaconda's drawing puts the FTR200 at 16,130 mm (52' 11") long, 2,550 mm (8' 4") wide and 2,585 mm (8' 6") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Ask us. We will walk you through set-up for the FTR200 before it arrives.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
