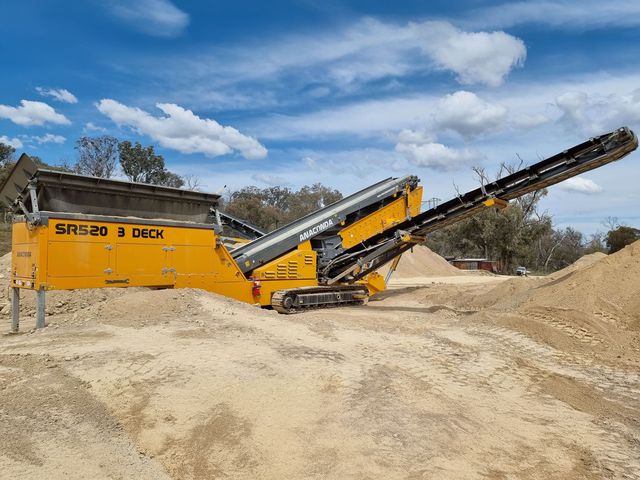

Anaconda SR520 three-deck finishing screen working among sand piles

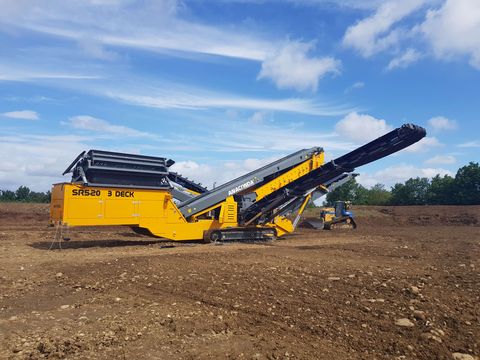

Anaconda SR520 finishing screen on a job site, Anaconda photo 1

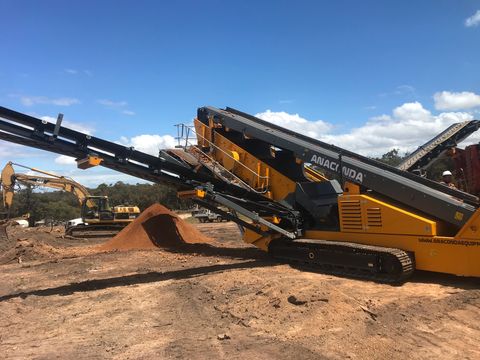

Anaconda SR520 finishing screen on a job site, Anaconda photo 2
Anaconda

SR520 Finishing Screen

Large-deck finishing screen for high-production sites.

Capacity
Up to 350 tph (Up to 385 US tph)
Screenbox size
6,150 mm x 1,520 mm (20’ x 5’)
Max feed size
125 mm (5”)
Get a Quote

What it does

The Anaconda SR520 Finishing Screen is a dry screening solution for materials such as quarry aggregates and road base. Available in 2-deck and 3-deck configurations, the SR520 features a 4.26 m (14’) hopper and can process up to 350 tph (385 US tph). It produces up to 4 finished products: fines, mids, mids oversize and oversize.

Where it fits

  • Quarry aggregate
  • Road base
  • Sand
  • Gravel
  • Bulk materials

Works with

Key features

  • 6 m x 1.52 m (20’ x 5’) 2 or 3-deck screen
  • Adjustable screen box angle – 18° to 30°
  • 3-piece end-tensioned mesh arrangement for the bottom deck
  • 5- piece side-tensioned mesh arrangement for top and secondary decks
  • Screen box and tail conveyor lower for mesh changeouts
  • Variable speed 4-ply belt feeder
  • Variable speed main and side conveyors
  • Radio remote tipping grid
See it working

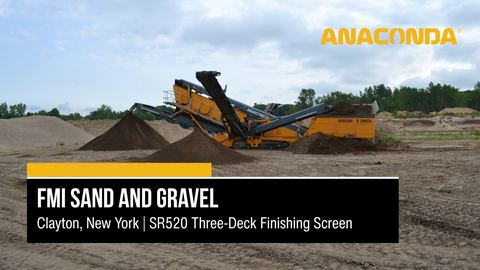

FMI Sand and Gravel case study: the SR520 (Anaconda video)

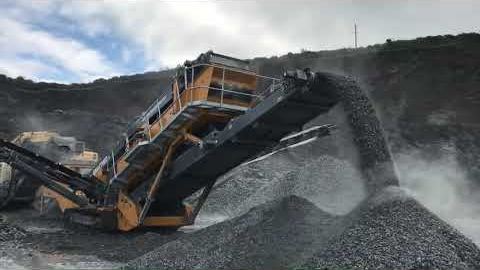

SR520 at a quarry, Ireland (Anaconda video)
SR520 walkaround (Anaconda video)

Full specifications
Height
2-Deck – 6.28 m
3-Deck – 6.28 m (2-Deck – 20′ 7″
3-Deck – 20′ 7″)
Length
19.80 m (65′)
Width
19.80 m (64′ 9″)
Weight
2-Deck – 34,900 kg
3-Deck – 38,560 kg (2-Deck – 76,940 lbs
3-Deck – 85,010 lbs)
Hopper capacity
8 m³ (10.4 yd³)

Anaconda’s published figures. Capacity depends on material and set-up. SR520 on anacondaequipment.com

Dimensions

For BC haulingTransport width 3,236 mm (10' 7"), height 3,496 mm (11' 6").

Transport

Length
18,849 mm (61' 10")
Width
3,236 mm (10' 7")
Height
3,496 mm (11' 6")

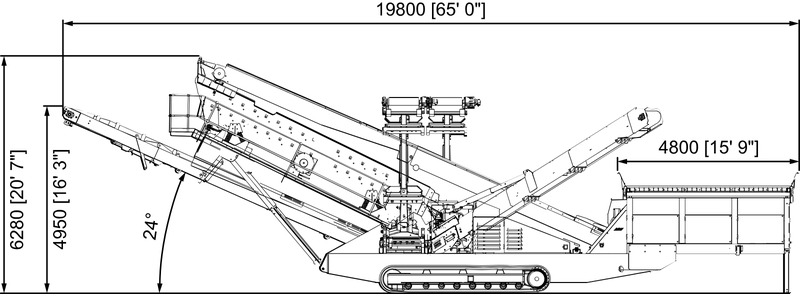

Anaconda working drawing of the SR520, with dimensions

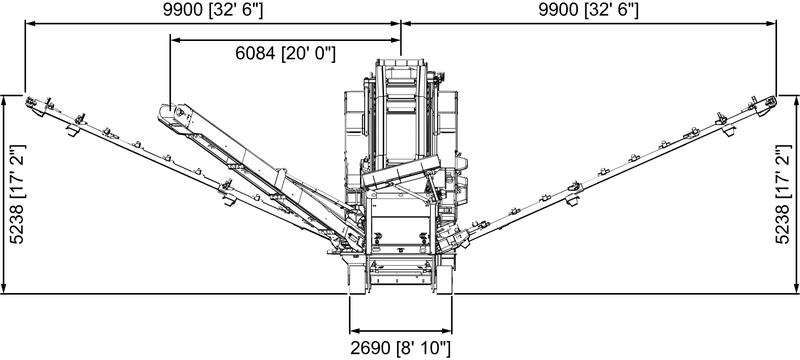

Anaconda working drawing of the SR520, with dimensions

Engine options
ModelPower UnitsEmission Tier
JCB 444 EcoMAX129 kW (173 HP)Tier 4 Final / Stage V
CAT (dual-certified)110 kW (148 HP)Stage V

Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.

Optional features

  • Screen decks available in mesh or piano wire
  • 2 or 3-deck configuration
  • 2-deck vibrating grid
  • Radio remote control
  • Dust covers
  • Anti-rollback feature
  • Overband magnet

Case study

Pulin Quarries Croatia An SR520 and I12R plant on limestone, reported at 250 to 300 tph. Read it on anacondaequipment.com

Own it, rent it, service it

  • Buy new

    We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the SR520.

  • Rent

    We rent tracked machines for jobs across Western Canada. Ask whether the SR520 is available for your dates.

    Rentals

  • Parts and service

    Parts and service from Delta, BC, with on-site support across Western Canada.

    Parts and service

Download brochure

Questions about the SR520

How does the SR520 move between sites?

Folded for transport, Anaconda's drawing puts the SR520 at 18,849 mm (61' 10") long, 3,236 mm (10' 7") wide and 3,496 mm (11' 6") high. Ask us to plan the haul from our yard in Delta, BC.

How long does it take to set up?

Ask us. We will walk you through set-up for the SR520 before it arrives.

Which engine does it run in Canada?

Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.

Who services it?

We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
