TR100 Tracked Conveyor
31 m tracked conveyor for tall, high-volume stockpiles.
- Conveyor length
- 31 m (101' 8")
- Max discharge height
- 13.5 m (44' 3")
- Belt width
- 1,050 mm (42")
What it does
The Anaconda TR100 Tracked Conveyor is the largest in the TR range with a 31 m (101′ 8″) conveyor body, capable of creating stockpiles up to 13.5 m (45′). The TR100 can be set up and running in as little as 20 minutes, helping operators to get up and running as quickly as possible. As a heavy-duty conveyor, the TR100 can be used in a wide variety of applications including topsoil, wood chips and aggregate. Featuring hydraulically folding head and tail sections, the TR100 only requires the feed boot to be dismantled prior to transportation.
Where it fits
- Aggregate
- Coal
- Ore
- Salt
- Soil
- Overburden
Works with
Key features
- Hydraulic folding head and tail section
- Hydraulic raise and lower front and rear legs
- Impact bed under feed boot
- 3-ply 1,050 mm (42”) wide plain belt

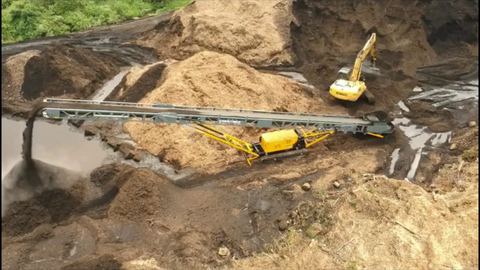

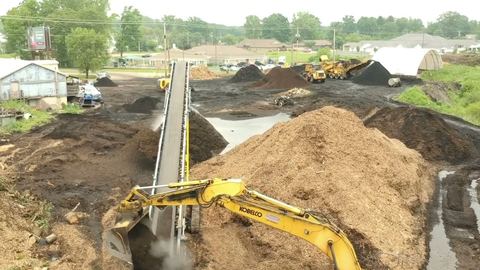

See it working

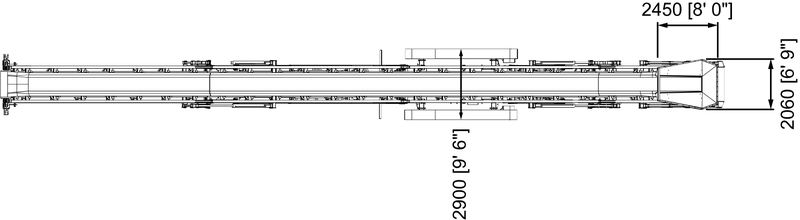

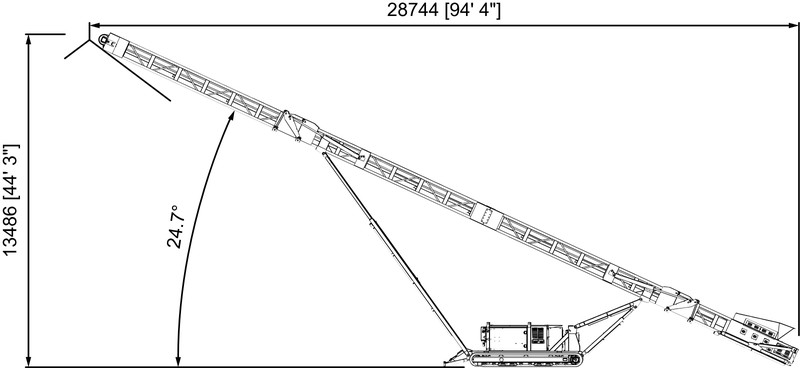

Dimensions
For BC haulingTransport width 2,900 mm (9' 6"), height 3,472 mm (11' 5").
Transport
- Length
- 16,840 mm (55' 3")
- Width
- 2,900 mm (9' 6")
- Height
- 3,472 mm (11' 5")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the TR100.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the TR100 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the TR100
How does the TR100 move between sites?
Folded for transport, Anaconda's drawing puts the TR100 at 16,840 mm (55' 3") long, 2,900 mm (9' 6") wide and 3,472 mm (11' 5") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Anaconda quotes set-up in as little as 20 minutes.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
