DF518 Scalping Screen
Big-deck scalper for bulky, abrasive feed.
- Capacity
- Up to 375 tph (Up to 413 US tph)
- Top deck
- 5,490 mm x 1,520 mm (18’ x 5’)
- Max feed size
- 300 mm (12”)
What it does
The Anaconda DF518 Scalping Screen is a primary screening solution for bulky and abrasive materials, such as quarry rock and overburden, with the ability to process up to 375 tph (413 US tph) at a max feed size of 300mm (12”). The DF518 has a 5.49 x 1.52 m (18’ x 5’) screen box and comes equipped with a hydraulically folding hopper and main conveyor as well as two hydraulically folding side conveyors. The DF518 can be set up and operational within 20 minutes of arriving on site.
Where it fits
- Quarry rock
- Overburden
- Sand and gravel
- C&D waste
- Topsoil
- Mining
Works with
Key features
- 5-piece side-tensioned top and second decks
- 3-piece end-tensioned bottom deck
- Screen box walkways for safe, easy maintenance
- Variable speed 4-ply belt feeder
- Variable speed on all stockpile belts

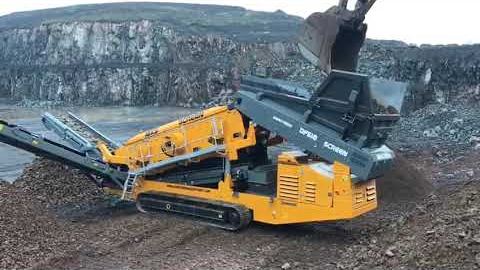

See it working
Dimensions
For BC haulingTransport width 2,978 mm (9' 9"), height 3,372 mm (11' 1").
Transport
- Length
- 15,800 mm (51' 10")
- Width
- 2,978 mm (9' 9")
- Height
- 3,372 mm (11' 1")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the DF518.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the DF518 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the DF518
How does the DF518 move between sites?
Folded for transport, Anaconda's drawing puts the DF518 at 15,800 mm (51' 10") long, 2,978 mm (9' 9") wide and 3,372 mm (11' 1") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Anaconda quotes set-up within 20 minutes of arriving on site.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
