I14 Impact Crusher
Large tracked impact crusher for high-volume producers.
- Chamber feed opening (W x H)
- 1,330 × 900 mm (52.3” × 35.4”)
- Rotor size (W x D)
- 1,195 × 1,295 mm (47” × 51”)
- Weight
- ≈ 46,800 kg (≈ 102,960 lb)
What it does

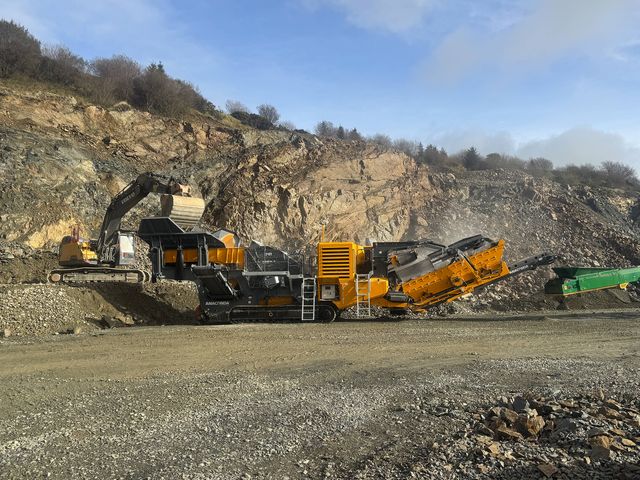

The Anaconda I14 Impact Crusher is an open circuit tracked crusher designed for aggregate crushing, C&D recycling, asphalt processing and concrete recycling applications. Fitted with a standard 3-bar rotor or optional 4-bar rotor on a McLanahan 1,195 mm x 1,295 mm (47” x 51”) Impact Chamber, the I14 Impact Crusher features fully hydraulic folding conveyors, a hydraulic folding hopper and a hydraulic apron setting for simple adjustments. Weighing under 46,800 kg (102,960 lbs), the I14 is light enough to be transported with a standard semi-trailer, reducing the need for permitting and special transport restrictions.
The I14 is ideal for large-scale producers and contracting customers needing increased production capabilities. The I14 Impact Crusher is also available in a closed circuit model – I14R Impact Crusher.
Where it fits
- Aggregate production
- C&D recycling
- Asphalt
- Concrete recycling
- Contract crushing
Works with
Key features
- McLanahan impact crushing chamber
- Fully hydraulic assisted apron setting for simple adjustments
- Open I-beam fabricated chassis for ease of maintenance
- Hydraulic folding conveyors and folding hopper
- Quick set up and breakdown time of 20 minutes
- 178 mm (7”) colour control panel display
Dimensions
Transport
- Length
- 15,950 mm (52' 3")
- Width
- 3,090 mm (10' 2")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the I14.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the I14 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the I14
How does the I14 move between sites?

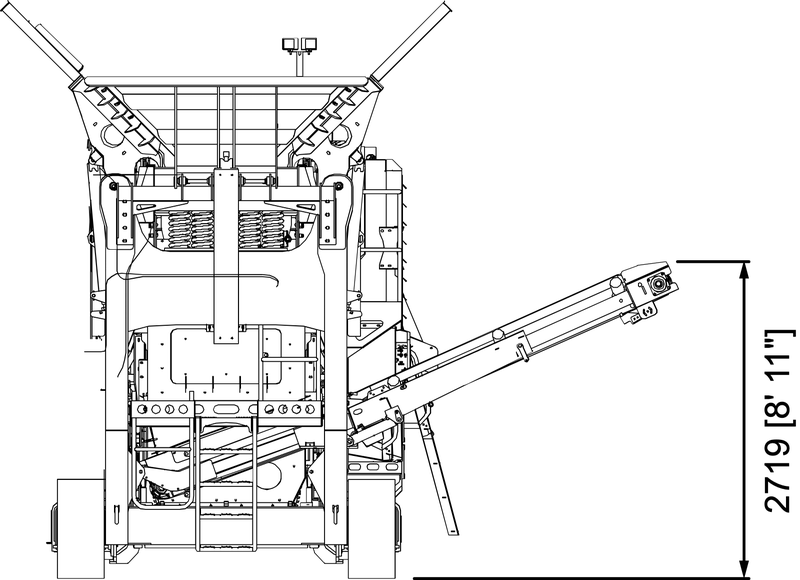

Anaconda's transport drawing gives the I14 as 15,950 mm (52' 3") long and 3,090 mm (10' 2") wide. Ask us for the full transport dimensions before you plan the haul.
How long does it take to set up?
Anaconda quotes about 20 minutes to set up or break down.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
