DF514 Scalping Screen
Heavy-duty scalper for high-volume quarry and recycling work.
- Capacity
- Up to 350 tph (Up to 386 US tph)
- Top deck
- 4,270 mm x 1,520 mm (14’ x 5’)
- Max feed size
- 300 mm (12”)
What it does

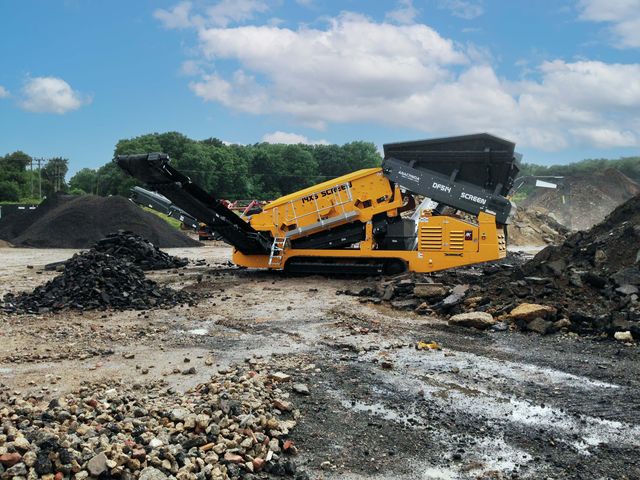

The Anaconda DF514 Scalping Screen is a primary screen with the ability to process up to 350 tph (386 US tph), designed to suit materials such as road waste, rock, road subbase, demolition waste, overburden and aggregates. The DF514 features a 4.27 m x 1.52 m (14’ x 5’) screen box and comes equipped with a hydraulically folding hopper, main conveyor and two stockpile conveyors for stockpiling up to 3 products. Designed for versatility, the DF514 accepts a max feed size of 300 mm (12”) and offers variable speed control across all conveyors for optimised material handling.
Where it fits
- Crushed stone
- Sand and gravel
- C&D waste
- Topsoil
- Overburden
- Road base
Works with
Key features
- Hydraulic folding hopper sides
- Variable speed 4-ply belt feeder
- Variable speed on all discharge conveyors
- Hydraulically raised screen box for quick mesh changeout
- Screen box safety walkways
See it working

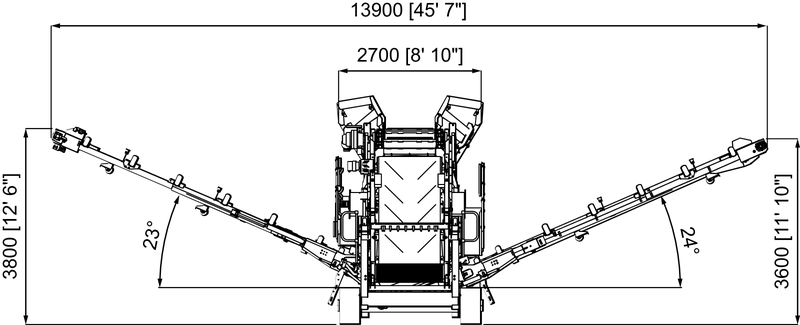

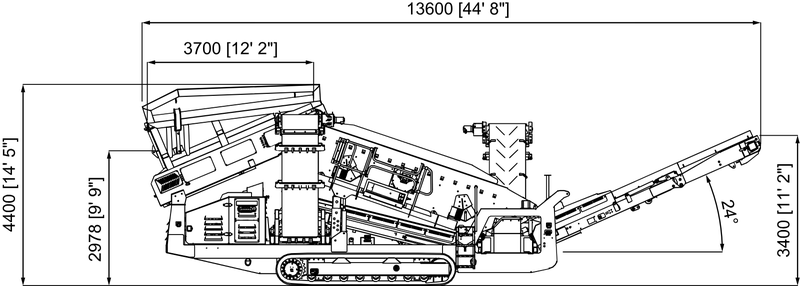

Dimensions
For BC haulingTransport width 3,000 mm (9' 10"), height 3,400 mm (11' 2").
Transport
- Length
- 13,600 mm (44' 8")
- Width
- 3,000 mm (9' 10")
- Height
- 3,400 mm (11' 2")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the DF514.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the DF514 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the DF514
How does the DF514 move between sites?
Folded for transport, Anaconda's drawing puts the DF514 at 13,600 mm (44' 8") long, 3,000 mm (9' 10") wide and 3,400 mm (11' 2") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Anaconda quotes about 20 minutes from arrival to running.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
