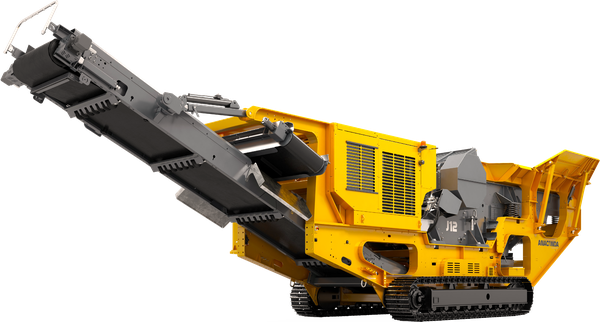

J12 Jaw Crusher
Tracked primary jaw crusher for rock, concrete and demolition feed.
- Feed opening
- 1,100 mm × 700 mm (44” × 28”)
- Weight
- 45,350 kg (100,000 lb)
- Transport width
- 2,988 mm (9' 10")
What it does
The Anaconda J12 Jaw Crusher is a versatile primary crushing solution designed to process abrasive materials such as basalt, granite, recycled concrete and virgin rock. The J12 Jaw Crusher utilises an extremely fuel efficient and powerful hydraulic system that allows the machine to provide excellent levels of productivity and comes standard with a fully hydraulic chamber adjustment, tramp release and reset. The direct hydraulic drive enables reverse operation to prevent uncrushable material from entering the chamber and offers adjustable closed side setting (CSS) for ultimate control over final product size.
Where it fits
- Quarrying
- Demolition and recycling
- Mining
- Granite
- Limestone
- Recycled concrete
- Asphalt
Works with
Key features
- Hydraulically folding wing plates
- Full hydraulic toggle and tension rod setup
- Variable speed on side conveyor
- Overband magnet with dual side discharge
- Vibrating grizzly feeder
- Quick set up and breakdown time in 20 minutes or less
- Radio remote control

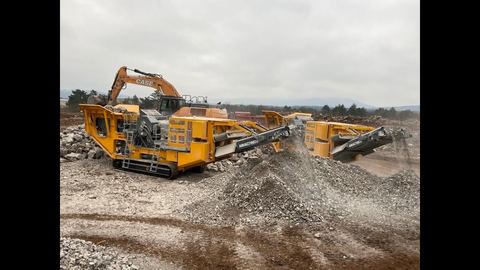

See it working

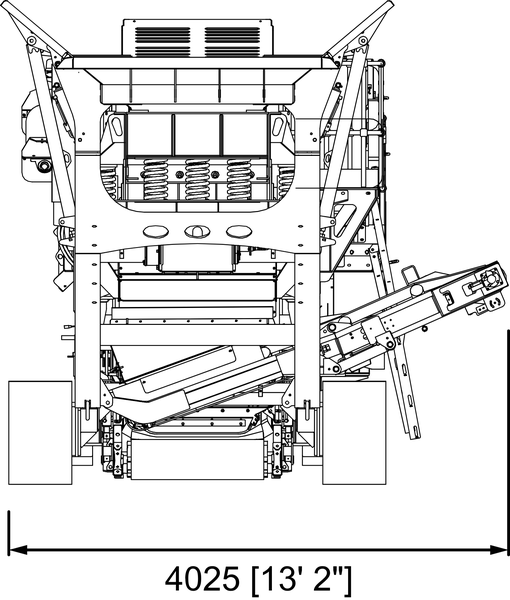

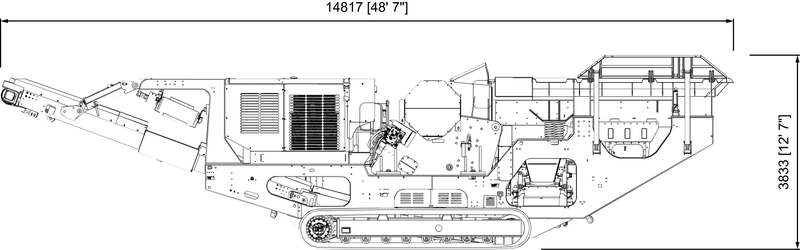

Dimensions
For BC haulingTransport width 2,988 mm (9' 10"), height 3,368 mm (11' 1").
Transport
- Length
- 14,542 mm (47' 9")
- Width
- 2,988 mm (9' 10")
- Height
- 3,368 mm (11' 1")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the J12.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the J12 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the J12
How does the J12 move between sites?
Folded for transport, Anaconda's drawing puts the J12 at 14,542 mm (47' 9") long, 2,988 mm (9' 10") wide and 3,368 mm (11' 1") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Anaconda quotes about 20 minutes from arriving on site to crushing.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
