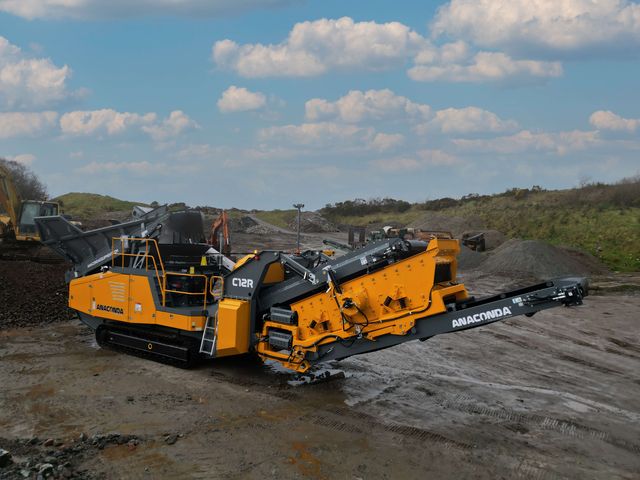

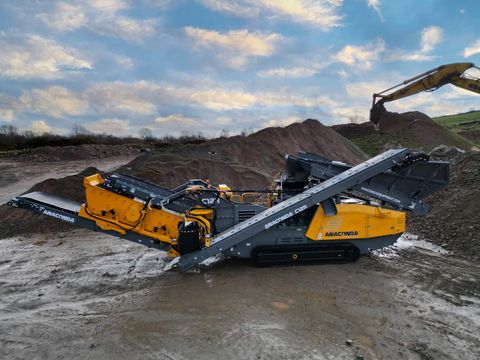

C12R Cone Crusher
Closed-circuit cone crusher that screens and returns its own oversize.
- Capacity
- Up to 240 tph (Up to 265 US tph)
- Recirculating screen
- 3.7 m × 1.5 m (12’ × 5’)
- Min. CSS
- 6 mm (¼”)
What it does
The Anaconda C12R Cone Crusher is suitable for aggregate applications and can be used in secondary and tertiary capacities. The C12R Cone Crusher utilises a FLSmidth Raptor® 250 cone chamber and can be fitted with a variety of liners to suit end user application. The C12R is a closed circuit crushing solution, featuring a 3.66 m x 1.52 m (12’ x 5’) recirculating screenbox allowing operators to reduce oversize material that can be sent back into the crusher or stockpiled. Anaconda also offers an open circuit solution, the C12 Cone Crusher.
Where it fits
- Sand and gravel
- River rock
- Blasted rock
- Processed ores and minerals
- Closed-circuit crushing
Works with
Key features
- FLSmidth Raptor® 250 Cone chamber
- Direct drive clutch and pulley
- Hydraulically adjustable closed side setting, tramp protection and folding hopper wing plates
- Continuous load and material monitoring
- Safety guarding
- Localised greasing points
- Fully serviceable from ground level
- Ultrasonic level sensor
- Radio remote control
- Quick 10-minute set up
- Side discharge dirt belt
- Recirculating screenbox
- Top and bottom deck
- Auxiliary transfer conveyor
See it working

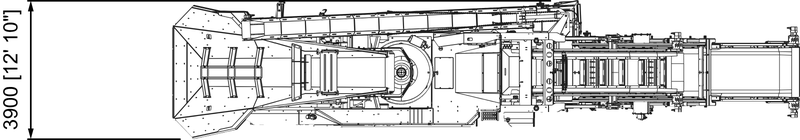

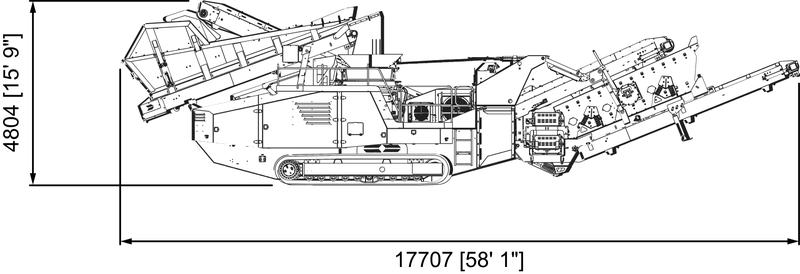

Dimensions
For BC haulingTransport width 3,487 mm (11' 5"), height 3,399 mm (11' 2").
Transport
- Length
- 19,260 mm (63' 3")
- Width
- 3,487 mm (11' 5")
- Height
- 3,399 mm (11' 2")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the C12R.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the C12R is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the C12R
How does the C12R move between sites?
Folded for transport, Anaconda's drawing puts the C12R at 19,260 mm (63' 3") long, 3,487 mm (11' 5") wide and 3,399 mm (11' 2") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Anaconda quotes set-up in under 10 minutes.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
