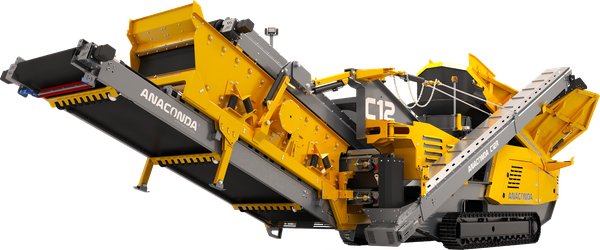

C12 Cone Crusher
Tracked cone crusher for secondary and tertiary reduction.
- Capacity
- Up to 240 tph (Up to 265 US tph)
- Min. CSS
- 6 mm (¼”)
- Throw
- 89 mm (4”)
What it does
The Anaconda C12 Cone Crusher is an open circuit style crusher that is suitable for a range of secondary or tertiary applications.
Direct drive technology powers the FLSmidth Raptor® 250, allowing operators to adjust the closed side setting (CSS) from 25 mm to 235 mm (1/4” to 9 ¼”). A range of different liners are available for the C12 Cone Crusher to support a variety of applications and materials. Featuring a timed pre-heat function, the crusher can be programmed to start-up remotely, decreasing wait times and allowing production to begin more efficiently.
Anaconda also produces its cone crusher as a closed circuit machine with the C12R Cone Crusher.
Where it fits
- Sand and gravel
- River rock
- Hard stone
- Ores and minerals
- Secondary crushing
- Tertiary crushing
Works with
Key features
- FLSmidth Raptor® 250 Cone chamber
- Direct drive clutch and pulley
- Hydraulically adjustable closed side setting, tramp protection and folding hopper wing plates
- Continuous load and material monitoring
- Safety guarding
- Localised greasing points
- Fully serviceable from ground level
- Ultrasonic level sensor
- Radio remote control
- Quick 10-minute set up
- Side discharge dirt belt
Dimensions
For BC haulingTransport width 3,100 mm (10' 2"), height 3,387 mm (11' 1").
Transport
- Length
- 16,015 mm (52' 7")
- Width
- 3,100 mm (10' 2")
- Height
- 3,387 mm (11' 1")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the C12.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the C12 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the C12
How does the C12 move between sites?
Folded for transport, Anaconda's drawing puts the C12 at 16,015 mm (52' 7") long, 3,100 mm (10' 2") wide and 3,387 mm (11' 1") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Anaconda quotes set-up in under 10 minutes.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
