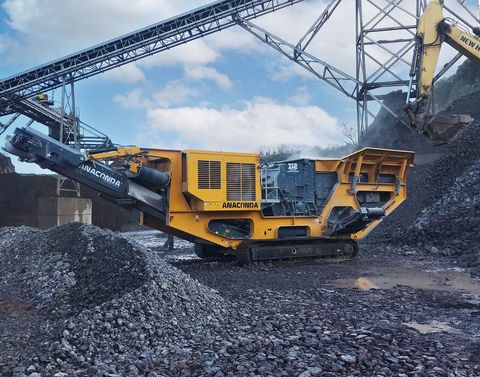

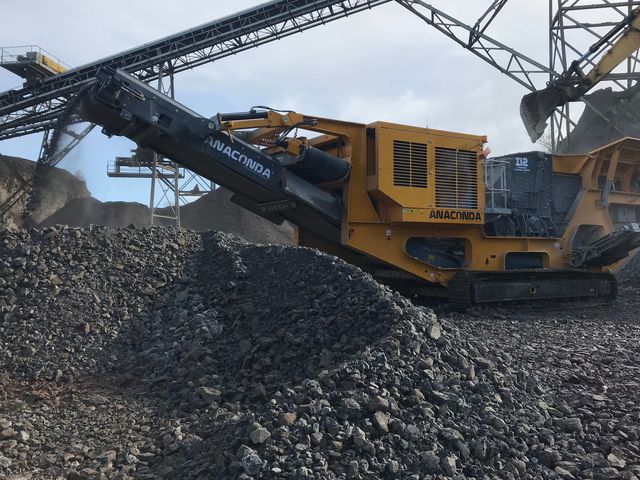

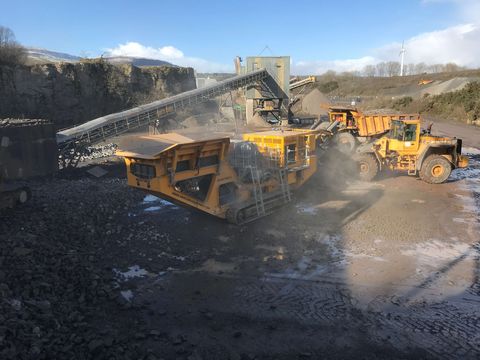

I12 Impact Crusher
Tracked impact crusher for quarry rock, concrete and asphalt.
- Chamber feed opening (W x H)
- 1,170 × 860 mm (46” × 33.5”)
- Rotor size (W x D)
- 1,090 × 1,140 mm (43” × 45”)
- Weight
- ≈ 40,000 kg (≈ 88,185 lb)
What it does
The Anaconda I12 Impact Crusher is an open circuit tracked crusher with direct hydraulic drive crushing. Fitted with a 1,090 mm (43”) 4-bar rotor on a 1,140 mm (45”) Universal crushing chamber, the I12 Impact Crusher features large access doors and two independent gravity-hung impact curtains.
The I12 Impact Crusher operates as a secondary or tertiary crusher, and it is suitable for processing virgin rock, C&D waste, basalt, blue rock and more. The I12 Impact Crusher is also available in a closed circuit model – I12R Impact Crusher.
Where it fits
- Quarry rock
- Recycled concrete
- Asphalt
- C&D waste
- Mining
Works with
Key features
- Universal crushing chamber
- Quick set up and breakdown time of 20 minutes
- Hydraulically folding wing plates
- Variable speed on discharge conveyors
- Overband magnet with dual side discharge
- Vibrating grizzly feeder
- Radio remote control
See it working

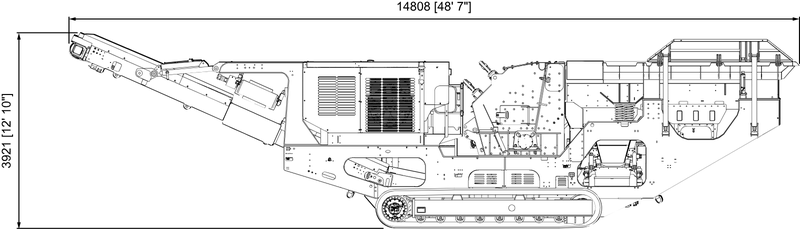

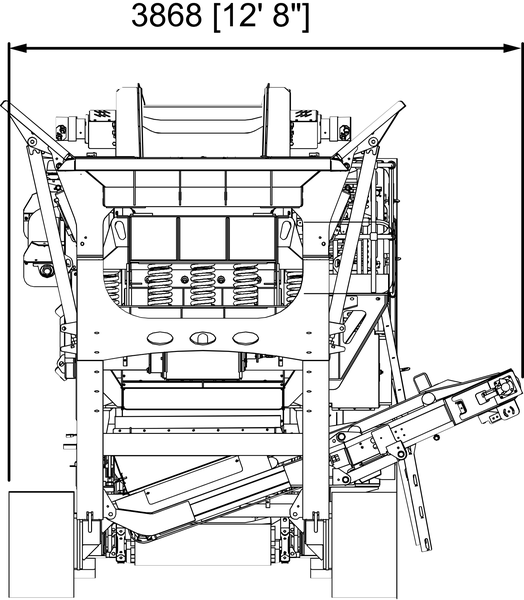

Dimensions
For BC haulingTransport width 2,988 mm (9' 10"), height 3,393 mm (11' 2").
Transport
- Length
- 15,051 mm (49' 5")
- Width
- 2,988 mm (9' 10")
- Height
- 3,393 mm (11' 2")
Case study
Aridos Antolin Palencia, Spain Producing limestone aggregate. Read it on anacondaequipment.comOwn it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the I12.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the I12 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the I12
How does the I12 move between sites?
Folded for transport, Anaconda's drawing puts the I12 at 15,051 mm (49' 5") long, 2,988 mm (9' 10") wide and 3,393 mm (11' 2") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Anaconda quotes about 20 minutes to set up or break down.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
