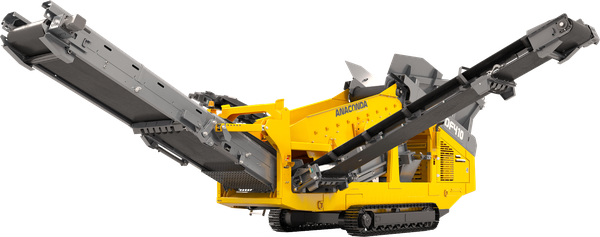

DF410 Scalping Screen
Compact scalping screen for tight sites and rental fleets.
- Capacity
- Up to 230 tph (Up to 254 US tph)
- Top deck
- 3,000 mm x 1,200 mm (10’ x 4’)
- Max feed size
- 300 mm (12”)
What it does
The Anaconda DF410 has been designed as a primary screening solution for operators that have low tonnage and straightforward operations. The DF410 can process up to 230 tph (254 US tph) with a max feed size of 300 mm (12”), and suits applications such as quarry rock, virgin soil, recycled concrete, topsoil, riverbed, utility waste, scrap metal and asphalt millings. The DF410 is 3 x 1.2 m (10’ x 4’) and contains two screen decks to make a total of 3 finished products.
Where it fits
- Sand and gravel
- Topsoil
- Recycled aggregate
- Demolition waste
- Asphalt millings
- Rental fleets
Works with
Key features
- Variable speed control on all belts (excluding fines)
- Flip-down hopper tailgate for direct feeding from a crushing belt
- Tail conveyor lowers hydraulically to easily access bottom screen deck
- Side-tensioned top deck
- End-tensioned bottom deck
- Containerises for transport without breakdown

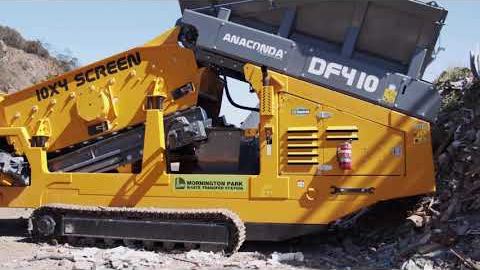

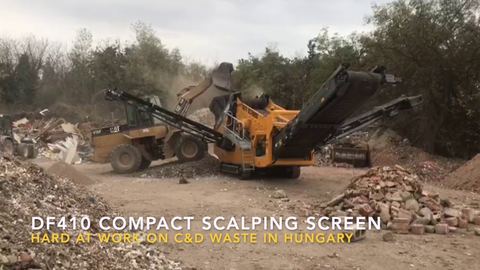

See it working

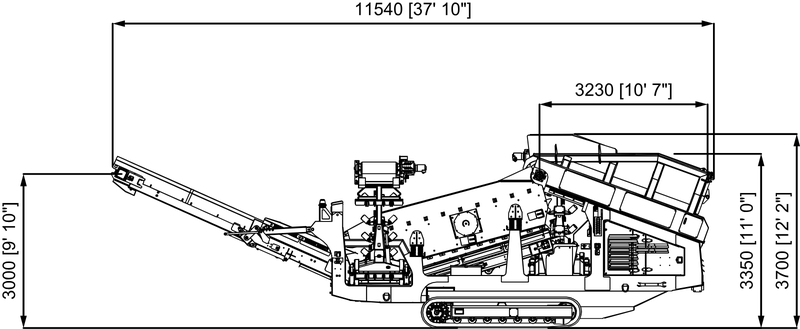

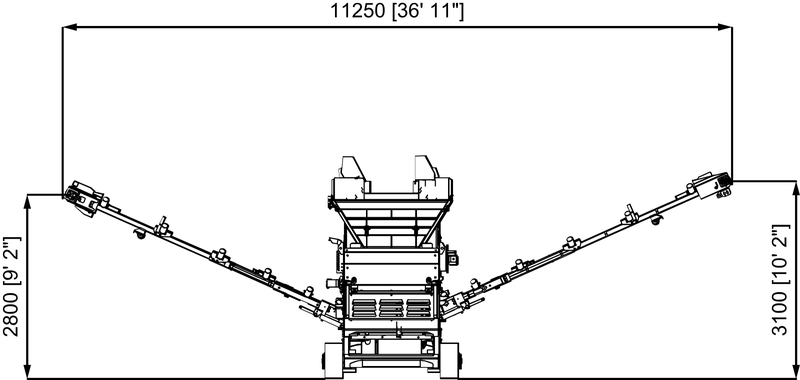

Dimensions
For BC haulingTransport width 2,350 mm (7' 9"), height 3,090 mm (10' 2").
Transport
- Length
- 9,900 mm (32' 6")
- Width
- 2,350 mm (7' 9")
- Height
- 3,090 mm (10' 2")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the DF410.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the DF410 is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the DF410
How does the DF410 move between sites?
Folded for transport, Anaconda's drawing puts the DF410 at 9,900 mm (32' 6") long, 2,350 mm (7' 9") wide and 3,090 mm (10' 2") high. Ask us to plan the haul from our yard in Delta, BC.
How long does it take to set up?
Anaconda quotes about 20 minutes from arrival to running.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
