I12R Impact Crusher
Closed-circuit impact crusher with its own two-deck screen.
- Chamber feed opening (W x H)
- 1,170 × 860 mm (46” × 33.5”)
- Recirculating screen
- 3,660 mm × 1,520 mm (12’ × 5’)
- Weight
- ≈ 50,000 kg (≈ 110,231 lbs)
What it does

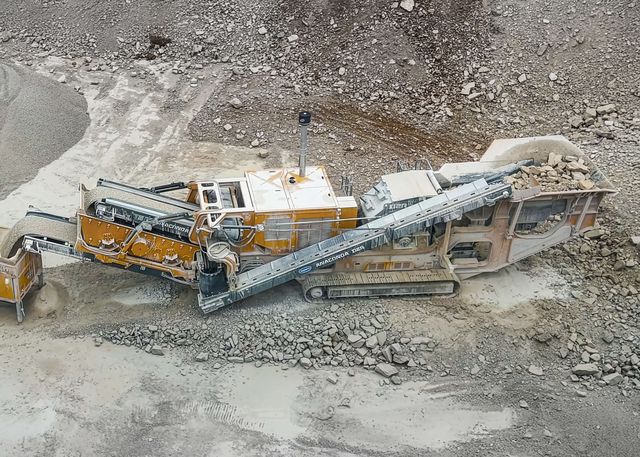

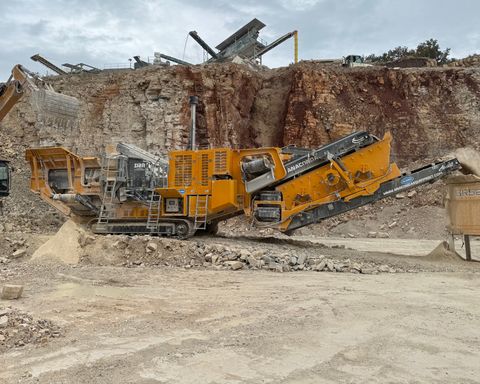

The Anaconda I12R Impact Crusher is a closed circuit crushing solution for operators looking to achieve precise product specifications. The I12R features a 1,090 mm (43”) 4-bar rotor on a 1,140 mm (45”) Universal crushing chamber. The I12R has the ability to recirculate oversize material back into the Universal crushing chamber for further processing utilising a high-energy double-deck screenbox. Access doors on the side, back and top of the crushing chamber allow for safe and easy access along with two independent gravity-hung impact curtains. The I12R is suitable for secondary or tertiary crushing of materials including blue rock, virgin rock, basalt and C&D waste. The Anaconda I12R Impact Crusher is also available in an open circuit solution – the I12 Impact Crusher.
Where it fits
- Aggregates
- Recycled concrete
- Asphalt
- Demolition waste
- Closed-circuit crushing
Works with
Key features
- Universal crushing chamber
- Quick setup and breakdown time of 20 minutes
- Hydraulically folding wing plates
- Variable speed on discharge conveyors
- Overband magnet
- Vibrating grizzly feeder

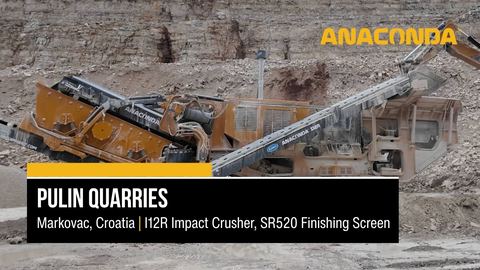

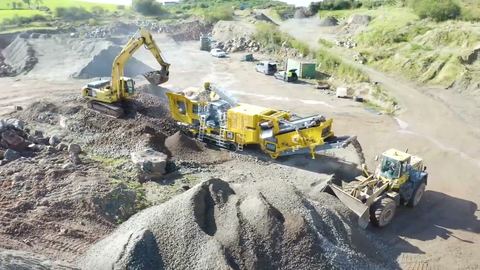

See it working

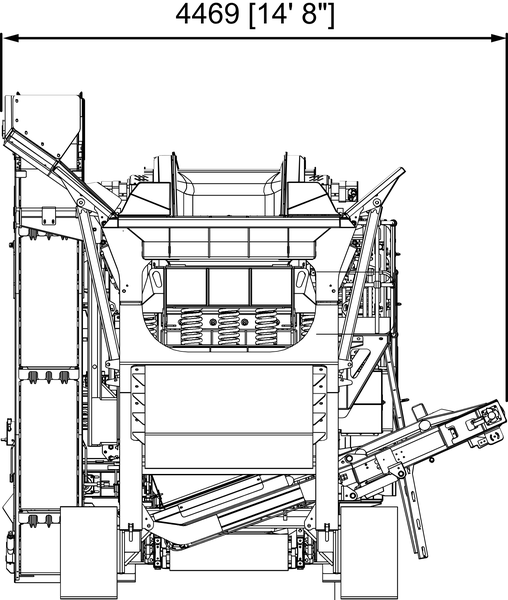

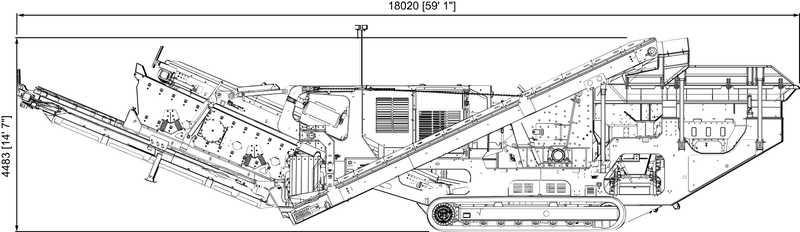

Dimensions
For BC haulingTransport width 3,499 mm (11' 6"), height 3,400 mm (11' 2").
Transport
- Width
- 3,499 mm (11' 6")
- Height
- 3,400 mm (11' 2")
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the I12R.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the I12R is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the I12R
How does the I12R move between sites?
Anaconda's transport drawing gives the I12R as 3,499 mm (11' 6") wide and 3,400 mm (11' 2") high. Ask us for the full transport dimensions before you plan the haul.
How long does it take to set up?
Anaconda quotes about 20 minutes to set up or break down.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
