I14R Impact Crusher
Closed-circuit I14 with Anaconda's largest afterscreen.
- Chamber feed opening (W x H)
- 1,330 × 900 mm (52.3” × 35.4”)
- Recirculating screen
- 4,270 x 1,830 mm (14’ × 6’)
- Weight
- ≈ 56,800 kg (≈ 125,000 lb)
What it does
The Anaconda I14R Impact Crusher is a closed circuit crushing solution designed with durability, improved material flow and increased production capabilities in mind. Fitted with a standard 3-bar rotor or optional 4-bar rotor on a McLanahan Universal 1,195 mm x 1,295 mm (47” x 51”) Impact Chamber, the I14R Impact Crusher features a recirculating conveyor that can be rotated from a closed loop position to a stockpiling position. The I14R’s recirculating system is equipped with a quickly detachable full-length top and bottom 4.27 m x 1.83 m (14’ x 6’) double-deck screen for producing a high-quality crushed and screened final product in one pass.
Ideal for large scale producers and contract crushing customers, the I14R Impact Crusher is built for aggregate crushing, C&D recycling, asphalt processing and concrete recycling applications. Weighing 56,800 kg (125,000 lbs), the I14R is light enough to be transported with a standard semi-trailer, reducing the need for permitting and special transport restrictions.
Where it fits
- Aggregate production
- C&D recycling
- Asphalt
- Concrete recycling
- Contract crushing
Works with
Key features
- McLanahan Universal impact crushing chamber
- Recirculating conveyor for closed-loop operation or stockpiling
- Full length top and bottom double-deck screen with 15.6 m³ (168 ft³) of screening area
- Fully hydraulic assisted apron setting for simple adjustments
- Open I-beam fabricated chassis for ease of maintenance
- Hydraulic folding conveyors and folding hopper
- Quick set up and breakdown time of 20 minutes
- 178 mm (7”) colour control panel display

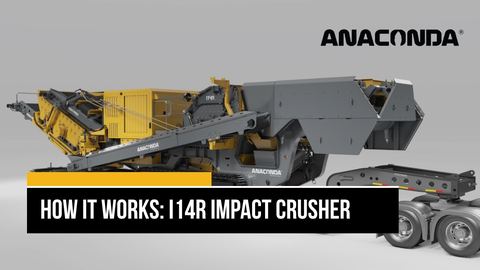

See it working

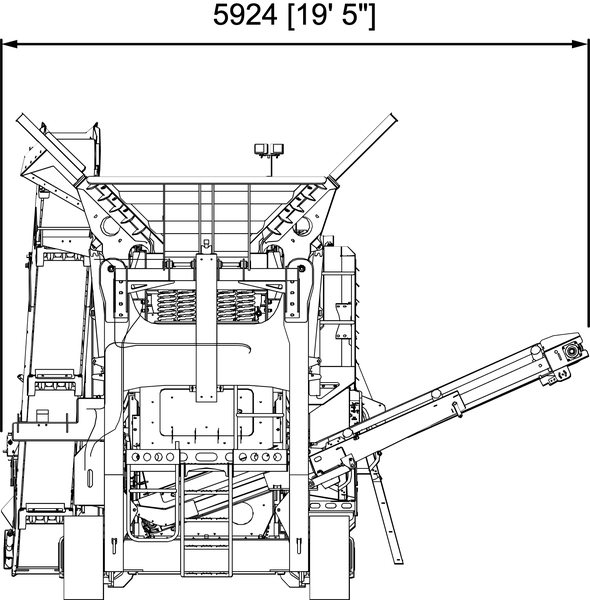

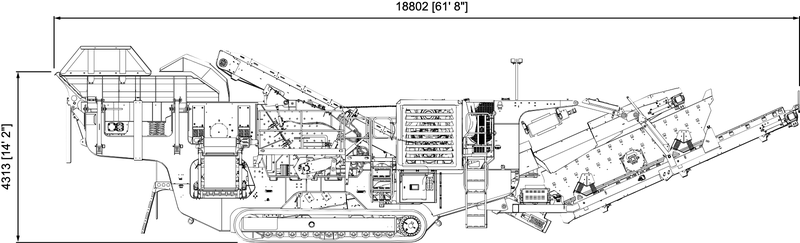

Dimensions
Own it, rent it, service it
-
Buy new
We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the I14R.
-
Rent
We rent tracked machines for jobs across Western Canada. Ask whether the I14R is available for your dates.
Rentals -
Parts and service
Parts and service from Delta, BC, with on-site support across Western Canada.
Parts and service
Questions about the I14R
How does the I14R move between sites?
Ask us for transport dimensions before you plan the haul.
How long does it take to set up?
Anaconda quotes about 20 minutes to set up or break down.
Which engine does it run in Canada?
Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.
Who services it?
We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
