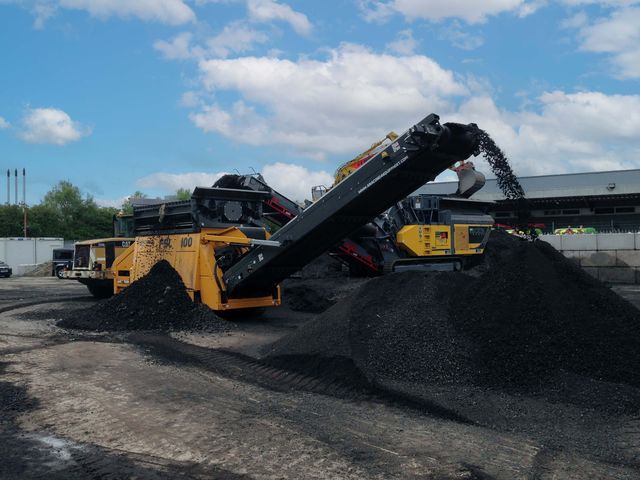

Anaconda FSL100 heavy-duty scalper stockpiling dark aggregate in a yard, other machines behind it

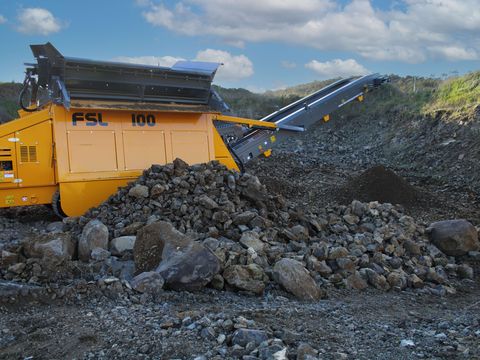

Anaconda FSL100 heavy-duty scalper on a job site, Anaconda photo 1

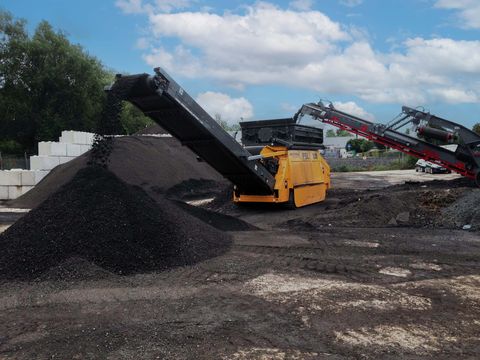

Anaconda FSL100 heavy-duty scalper on a job site, Anaconda photo 2
Anaconda

FSL100 Heavy-Duty Scalper

Heavy-duty primary scalper for coarse, blocky material.

Capacity
Up to 600 tph (Up to 661 US tph)
Max feed size
500 mm (20”)
Volume
4.8 m³ (6.3 yd³)
Get a Quote

What it does

The Anaconda FSL100 was developed for high-capacity, abrasive operations such as scalping road and concrete waste. The FSL100 can process up to 600 tph (661 US tph) and accept a max feed size of 500 mm (20”). The heavy-duty primary scalper consists of a 3.8 x 2.4 m (12’ x 7’) double-deck vibrating screen and, with its small footprint, can be set up in as little as 40 minutes.

Where it fits

  • Riprap
  • Gabion stone
  • Drainage rock
  • Road waste
  • Concrete waste

Works with

Key features

  • Adjustable vibrating grid
  • Hydraulic tipping function
  • 6-ply conveyor belt
  • Flip hopper tailgate for direct feeding from the crushing belt
See it working

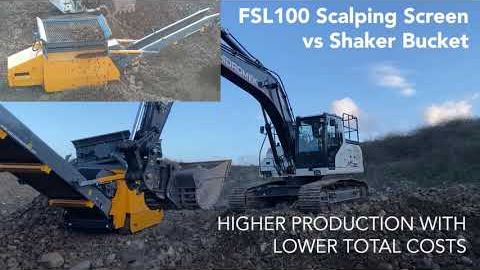

FSL100 against an excavator screening bucket (Anaconda video)
FSL100 screening road planings to 50 mm (Anaconda video)

Full specifications
Height
4.05 m (13′ 3″)
Length
12.30 m (40′ 4″)
Width
2.56 m (8′ 4″)
Weight
18,900 kg (41,667 lbs)
Hopper capacity
4.8 m³ (6.3 yd³)

Anaconda’s published figures. Capacity depends on material and set-up. FSL100 on anacondaequipment.com

Dimensions

For BC haulingTransport width 2,330 mm (7' 8"), height 3,100 mm (10' 2").

Transport

Length
10,800 mm (35' 5")
Width
2,330 mm (7' 8")
Height
3,100 mm (10' 2")

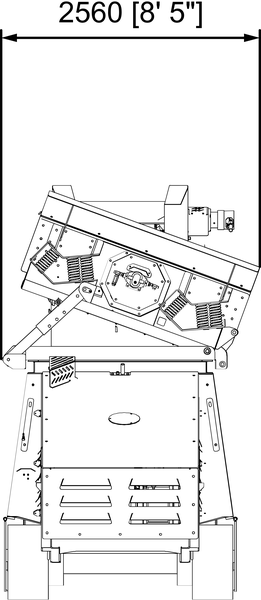

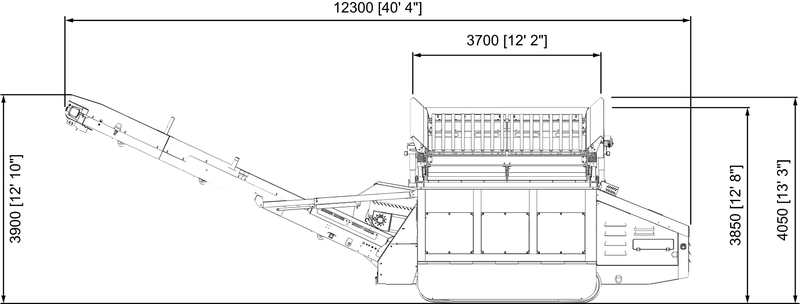

Anaconda working drawing of the FSL100, with dimensions
Anaconda working drawing of the FSL100, with dimensions

Engine options
ModelPower UnitsEmission Tier
JCB 444 EcoMAX55 kW (74 HP)Tier 4 Final
Deutz 2.9 L450 kW (67 HP)Stage V
JCB 43055 kW (74 HP)Stage V

Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.

Optional features

  • Dust covers for the main belt
  • Radio remote control
  • Overband magnet

Own it, rent it, service it

  • Buy new

    We are the Anaconda dealer for British Columbia. Talk to us about spec, delivery and set-up for the FSL100.

  • Rent

    We rent tracked machines for jobs across Western Canada. Ask whether the FSL100 is available for your dates.

    Rentals

  • Parts and service

    Parts and service from Delta, BC, with on-site support across Western Canada.

    Parts and service

Download brochure

Questions about the FSL100

How does the FSL100 move between sites?

Folded for transport, Anaconda's drawing puts the FSL100 at 10,800 mm (35' 5") long, 2,330 mm (7' 8") wide and 3,100 mm (10' 2") high. Ask us to plan the haul from our yard in Delta, BC.

How long does it take to set up?

Anaconda quotes set-up in as little as 40 minutes.

Which engine does it run in Canada?

Every Anaconda machine we sell runs a Tier 4 Final / Stage V engine, as Canadian law requires.

Who services it?

We do. Parts and service from our shop at 7973 River Road, Delta, BC V4G 1C2, with on-site support across Western Canada.
